| Quantity: | |
|---|---|
Mixed cellulose (MCE), Activated carbon fiber (ACF)
Pharmaceutical, Food and Beverage

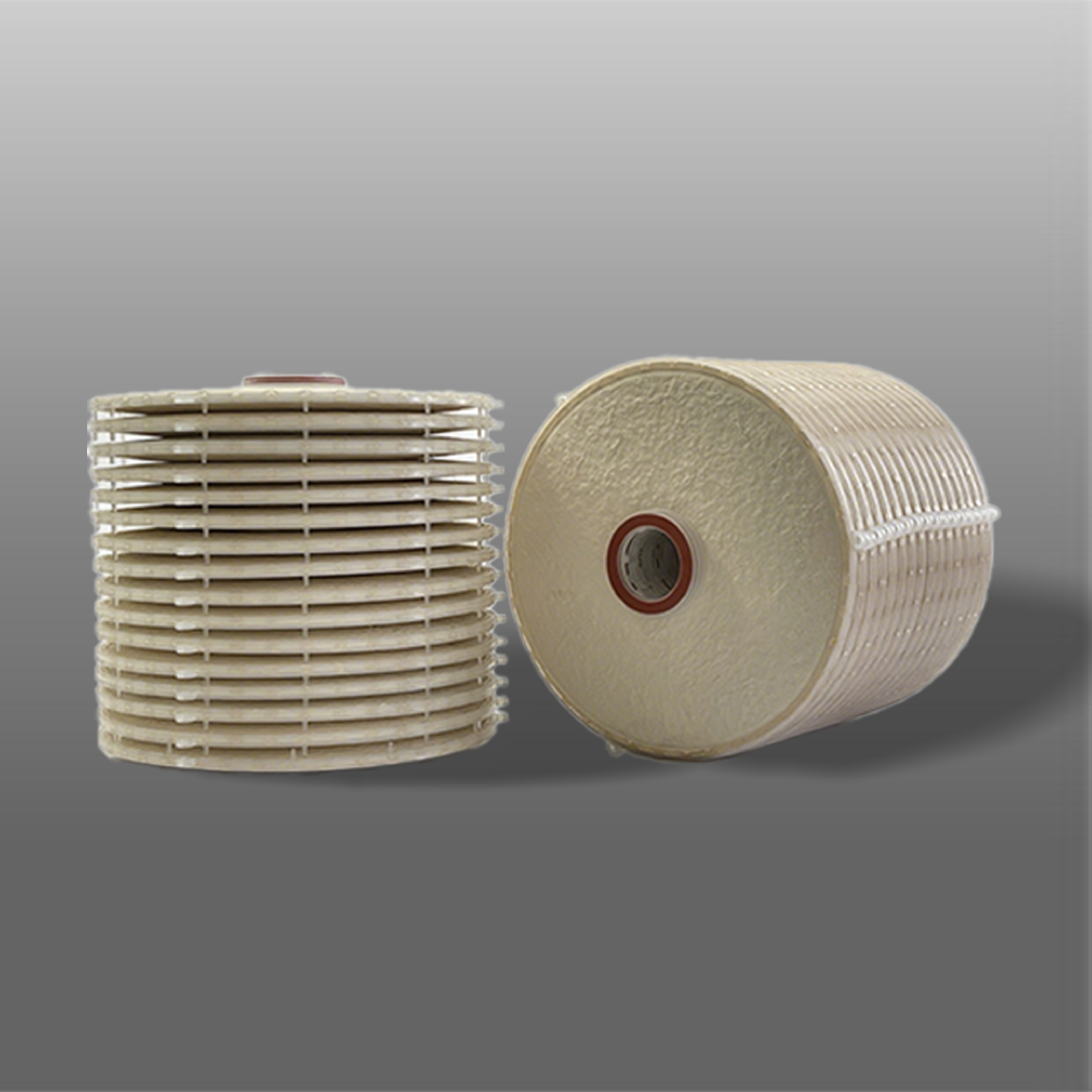

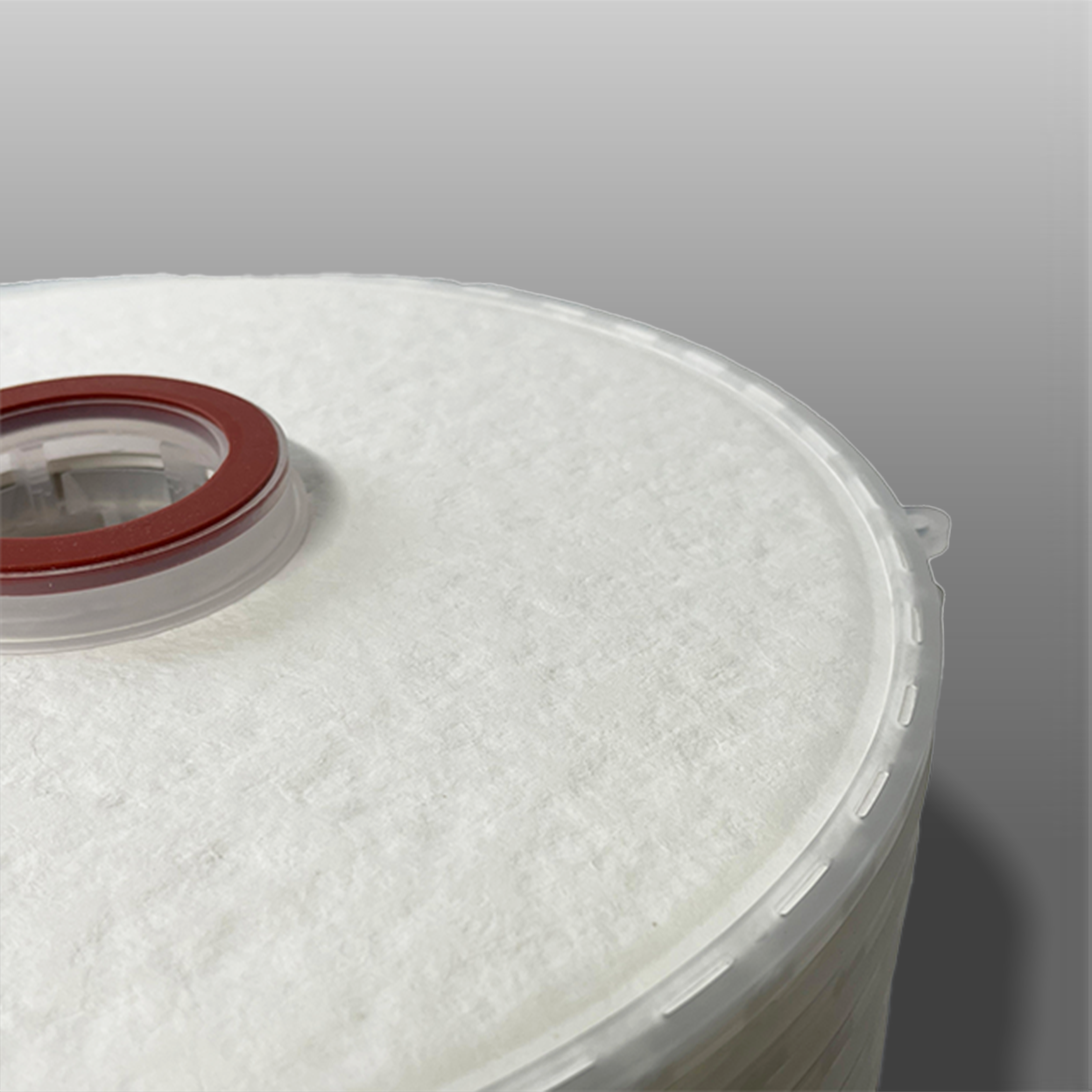

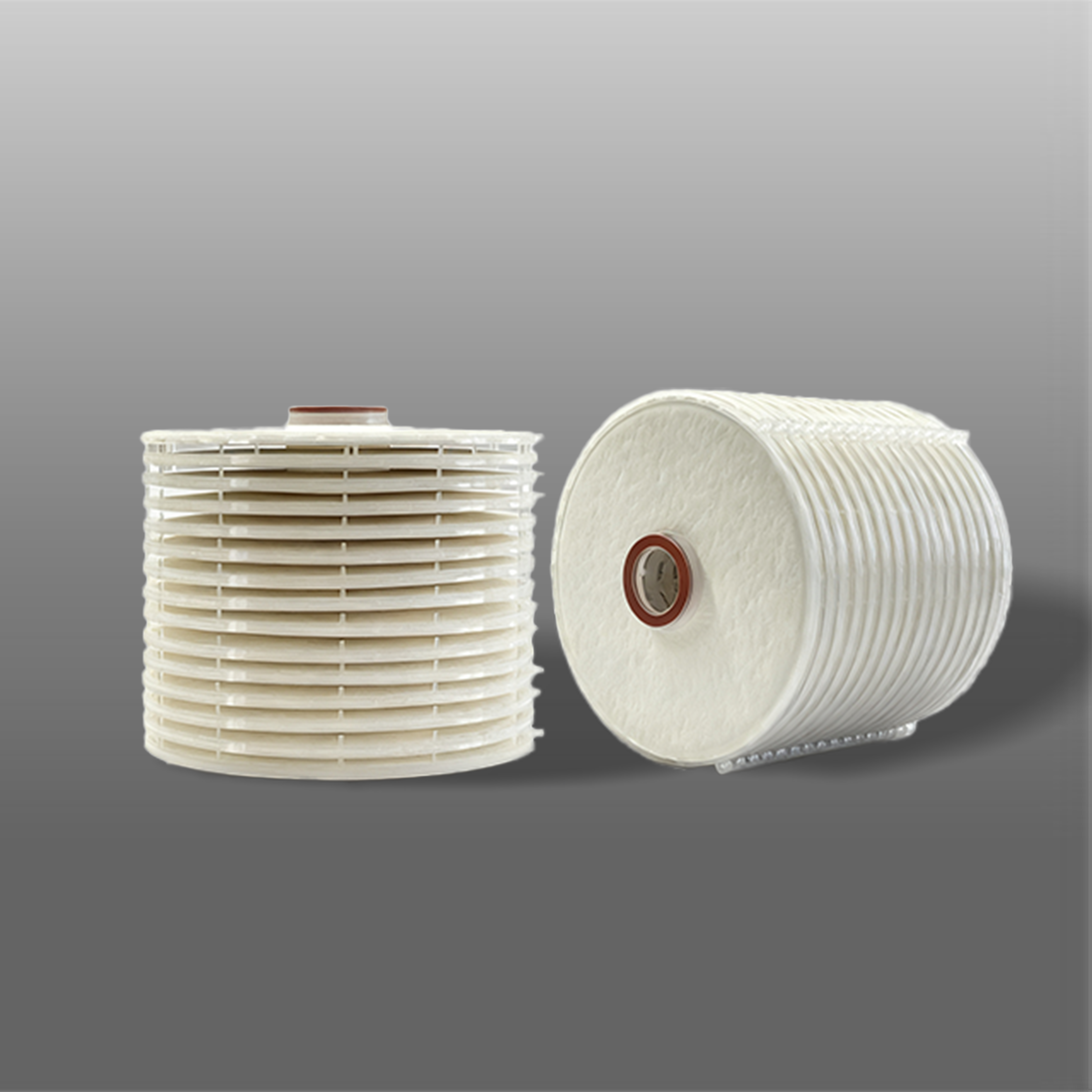

The Loongfiltech DKF series depth filter module(Lenticular Filter) is made of high-purity wood cellulose, inorganic filter aids and resins. Its unique three-dimensional spatial channel gives it an ultra-high porosity, and thus has a very high dirt holding capacity and good interception efficiency. It is particularly suitable for the pre-filtration process of process fluids with high viscosity, complex components and colloidal solutions. It can effectively filter pollutants in various process fluids through physical interception and material adsorption.
Features and Benefits
High porosity structure, long service life, high flux
Various materials and layer combinations
Withstand up to 80℃
Application
Vaccine stock solution filtration
Biochemical solution filtration
Sugar solution filtration
Cyclodextrin solution filtration
Materials of Construction
Filter material: Cellulose, Diatomaceous earth, Resin
Support: PP
Seal: Silicone/EPDM/Viton
Quality System and Production Environment
ISO13485 & ISO9001
Medical device grade 100,000 cleanroom
Working Characteristic
Max. Temperature: 80℃
Max. Differential Pressure:2.5bar(23℃), 1.0bar(80℃)
Removal Ratings (μm)
0.2-30μm (see ordering information for details)
Ordering Information
Series | Material | Rating(μm) | End Cap | Outer diameter(in) | Seal | Number of layers |
DKF | M= Pure cellulose | 02=0.2-0.4 | D= DOE | 8=8” | S= Silicone | 8=8 |
S= Composite Materials | 03=0.3-0.5 | 12=12” | E= EPDM | 12=12 | ||
C= Activated carbon | 05=0.5-0.8 | 16=16” | V= Viton | 15=15 | ||
08=0.8-1.0 | 16=16 | |||||
1=1-3 | ||||||
3=3-6 | ||||||
5=5-12 | ||||||
15=15-30 |
