Polytetrafluoroethylene (PTFE)
Fine Chemical

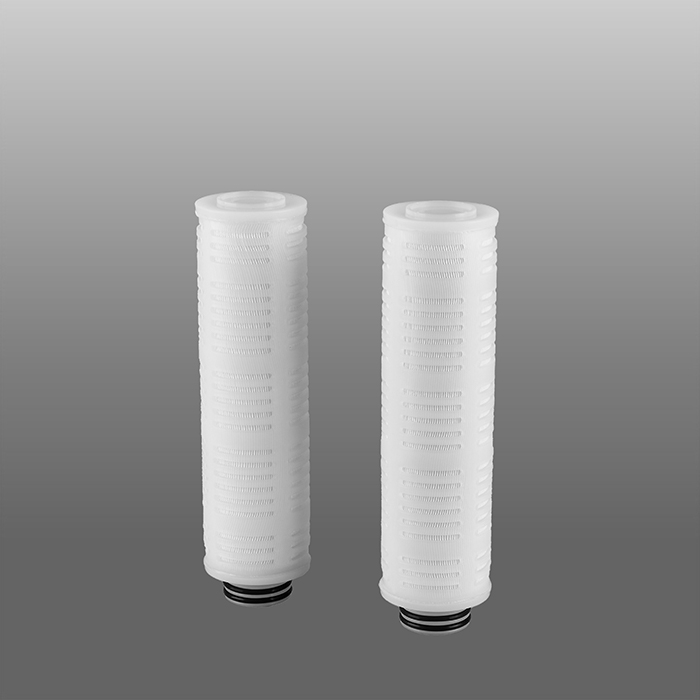

This series of filter cartridge adopts the hydrophobic PTFE membrane as the filter layer, the skeleton and support layer are all made of perfluorine-like PVDF/ECTFE, its sealing ring is fluorine-coated, which has a wide range of chemical compatibility. It is particularly suitable for strengthening the filtration of corrosive materials and liquids. Each filter cartridge passes the integrity test before leaving the factory, so that the quality filter is guaranteed.
Features and Benefits
Hydrophobic/Hydrophilic PTFE membrane
The skeleton, support layer and sealing ring are all made of fluorine material
Excellent chemical resistance
Application
Filtration of hydrochloric acid, nitric acid, phosphoric acid and other strong acid solutions
Filtration of chloroform, dimethyl, isopropyl alcohol and other solvents
Filtration of mineral oil and hydraulic oil
Filtration of aliphatic organics
Filtration of electronic chemicals
Materials of Construction
Membrane: Hydrophobic PTFE
Cage &Support & End Caps: PVDF/ECTFE
O-rings/Gasket: TEV
Performance Characteristics
PVDF＜60℃
PVDF with stainless steel lined end cap＜85℃
PVDF with stainless steel lining＜95℃
Positive/Reverse pressure resistance 4bar/2bar (23℃)
Filtration Area
≥0.6 m2 /10”
Dimensions
Outer Diameter: 68mm
Length（in）: 10, 20, 30, 40
Removal Ratings (μm)
0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10
Typical Liquid Flow Rate
Ordering Information
Series | Rating(μm) | End Cap | Length(in) | Support | Port | Seal |
FCTV | 005=0.05 | A=222/Fin | 02=2.5" | P=PP | V | V= Viton |
01=0.1 | B=222/Flat | 05=5" | B=PBT | T= TEV | ||
022=0.22 | C=226/Fin | 1=10" | V=PVDF | N=Butyronitrile | ||
045=0.45 | D=226/Flat | 2=20" | F=PFA | F=PTFE gasket (hard) | ||
1=1.0 | E=DOE/Flat | 3=30" | M=PE | M=PTFE gasket (soft) | ||
3=3.0 | F=215/Fin | 4=40" | G=GF | |||
5=5.0 | G=215/Flat | |||||
10=10 |
