Polypropylene (PP)
Water Treatment
Super-D series high flow filter cartridge uses nano-sized ultra-fine fiber PP filter membranes with a 5 to 10 layers gradient precision membrane structure. Under a pressure difference of 3.0 bar, the instantaneous flux is 1.5 times larger than that of ordinary structures. And the service life is 3 times longer than the ordinary high flow filter cartridge at the same level of pollution.
Features and Benefits
Nanoscale microfiber PP filter membrane with Superior dirt-holding capacity
Long service life
Multiple layers structure design, capable of intercepting particles of different sizes
Using infrared welding technology without adhesives.
Application
Widely used in the water treatment, coal chemical, desalination, and security filters in front of Ro, EDI in thermal power plant industries.
Materials of Construction
Membrane：nano-sized pp filter membrane
Filter Media &Support & End Caps：PP
Drainage：PP
O-rings/Gasket：Viton /EPDM/TEV
Performance Characteristics
Working temperature ＜80℃
Positive pressure resistance 4bar (23℃)
Reverse pressure resistance 2bar (23℃)
Pore size Rating (μm)
1，3，5，10，50，100
Filtration Area
≥5.5 m2 /40″
Dimensions
Cage Diameter：165mm
Length（in）：20，40，60

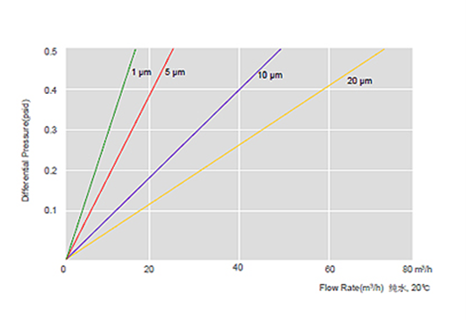

Typical Liquid Flow Rate
