Activated carbon fiber (ACF)
Food and Beverage
This series of filter is made of activated carbon fiber and PP through special processing technology, with physical interception function. At the same time, it can absorb residual chlorine, bacteria, pigments and some heavy metals in liquids and gases. It is used for odor removal, decolorization and endotoxin adsorption.
Features and Benefits
Effective absorption of contaminants in fluids
Large amount of contamination
High flux
High flow rate
Application
Sterilization and sterilization filtration of beer and red wine
Sterilization and sterilization filtration of mineral water and pure water
Sterilization and sterilization filtration of soft drinks
Materials of Construction
Filter Media: Activated Carbon Fiber
Support & End Caps: PP
O-rings/Gasket: Silicone /Viton /EPDM/TEV
Sealing technology: Thermal Bonding, No Adhesives
Performance Characteristics
PP＜60℃
PP with stainless steel lined end cap＜85℃
PP with stainless steel lining＜95℃
Positive/Reverse pressure resistance 4bar/2bar (23℃)
Filtration Area
≥0.55 m2 /10”
Dimensions
Outer Diameter: 68mm
Length（in）: 10, 20, 30, 40
Removal Ratings (μm)
1.0, 3.0, 5.0

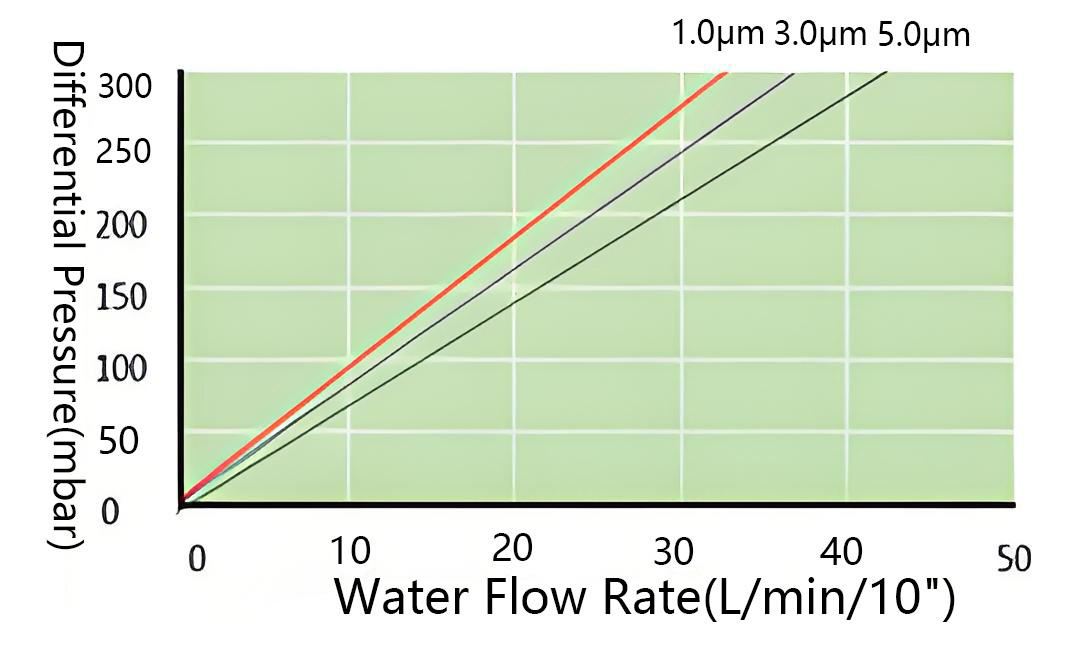

Typical Liquid Flow Rate
Ordering Information
Series | Rating(μm) | End Cap | Length(in) | Support | Port | Seal |
FBA | 1=1.0 | A=222/Fin | 02=2.5" | P=PP | B= Interface lining steel | S= Silicone |
3=3.0 | B=222/Flat | 05=5" | B=PBT | C= Fully lining | E= EPDM | |
5=5.0 | C=226/Fin | 1=10" | V=PVDF | D= Skeleton lining | V= Viton | |
D=226/Flat | 2=20" | F=PFA | T= TEV | |||
E=DOE/Flat | 3=30" | M=PE | N=Butyronitrile | |||
F=215/Fin | 4=40" | G=GF | F=PTFE gasket (hard) | |||
G=215/Flat | M=PTFE gasket (soft) |
