Polytetrafluoroethylene (PTFE)
Food and Beverage
This series of filter cartridge is made of hydrophobic PTFE membrane, using a unique production process, with excellent resistance to organic and natural hydrophobicity. The filter cartridge has good heat resistance and can withstand multiple high temperature steam sterilization. Each cartridge is tested for integrity before leaving the factory.
Features and Benefits
Naturally strong hydrophobicity
Broad chemical compatibility, can resist strong acid and alkali, strong polar organic solvents
Low precipitate
High dirt-holding
Application
Fermentation gas filtration
Sterilization filtration of beer and red wine
Sterilization filtration of mineral water and pure water
Sterilization filtration of soft drinks
Materials of Construction
Membrane: Hydrophobic PTFE
Cage & Support & End Caps: PP
O-rings/Gasket: Silicone /Viton /EPDM/TEV
Performance Characteristics
PP＜60℃
PP with stainless steel lined end cap＜85℃
PP with stainless steel lining＜95℃
Positive/Reverse pressure resistance 4bar/2bar (23℃)
Filtration Area
≥0.6 m2 /10”
Dimensions
Outer Diameter: 68mm/70mm
Length（in）: 10, 20, 30, 40
Removal Ratings (μm)
0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10
Integrity Test (BP, 95%ethanol@23℃)
0.1μm ≥ 1.0bar
0.22μm ≥ 0.9bar
0.45μm ≥ 0.3bar

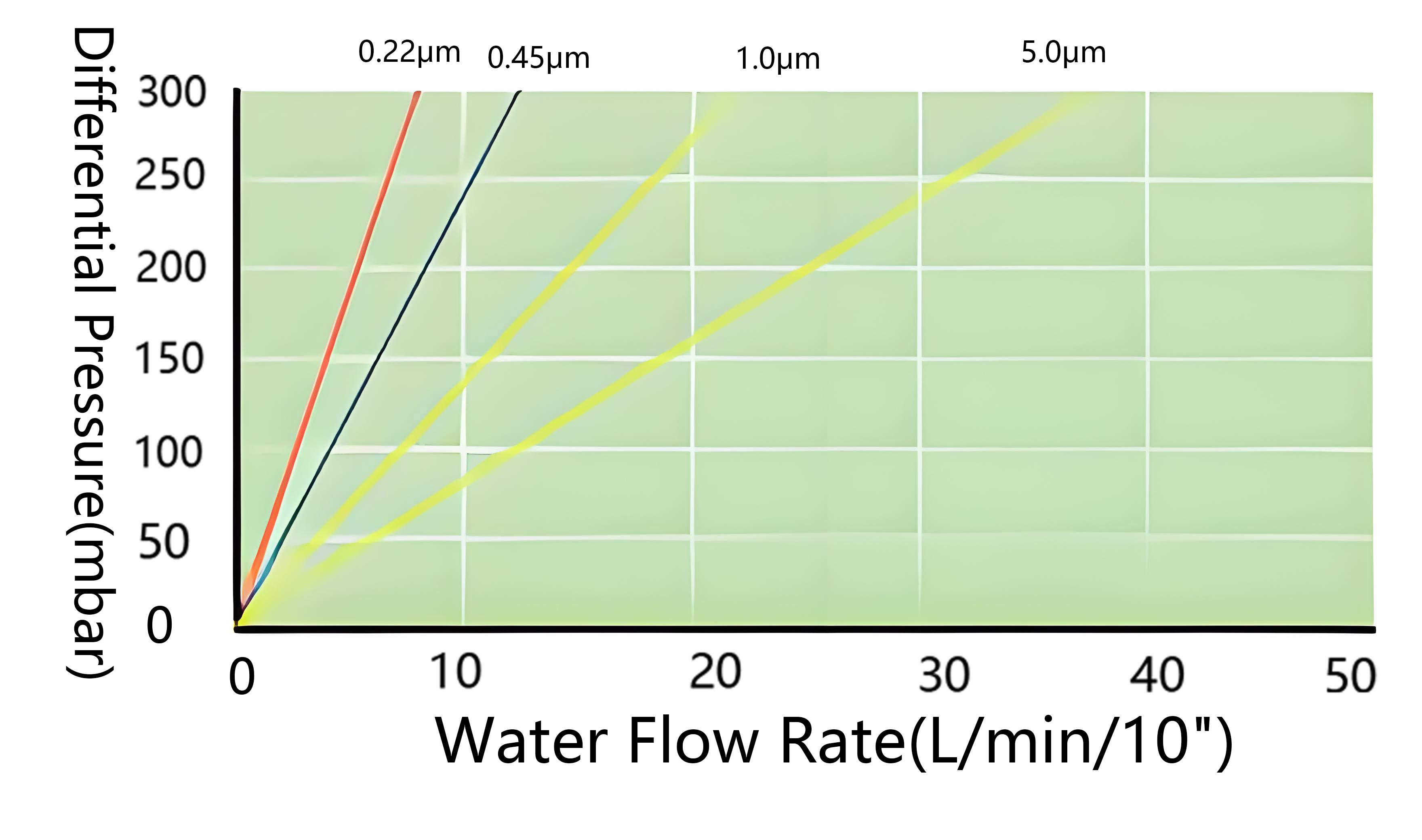

Typical Liquid Flow Rate
Ordering Information
Series | Rating(μm) | End Cap | Length(in) | Support | Port | Seal |
FBT | 01=0.1 | A=222/Fin | 02=2.5" | P=PP | B= Interface lining steel | S= Silicone |
022=0.22 | B=222/Flat | 05=5" | B=PBT | C= Fully lining | E= EPDM | |
045=0.45 | C=226/Fin | 1=10" | V=PVDF | D= Skeleton lining | V= Viton | |
1=1.2 | D=226/Flat | 2=20" | F=PFA | T= TEV | ||
3=3.0 | E=DOE/Flat | 3=30" | M=PE | N=Butyronitrile | ||
5=5.0 | F=215/Fin | 4=40" | G=GF | F=PTFE gasket (hard) | ||
10=10.0 | G=215/Flat | M=PTFE gasket (soft) |
