Polyethersulfone (PES)
Food and Beverage

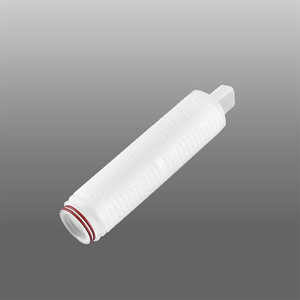

This series of filter cartridge is made of hydrophilic PES membrane and PP skeleton, the membrane material is made of asymmetric PES membrane and non-woven fabric as the support layer folded, the filter cartridge has good heat resistance, can withstand multiple hot water disinfection. Each filter cartridge has passed the integrity test before delivery.
Features and Benefits
Naturally PES membrane
Long service life and superior dirt-holding capacity
Easy to be wet
Excellent heat resistance makes high temperature sterilization safer and more effective
Application
Sterilization filtration of beer and red wine
Sterilization filtration of mineral water and pure water
Sterilization filtration of soft drinks
Materials of Construction
Membrane: Hydrophilic PES
Cage & Support & End Caps: PP
O-rings/Gasket: Silicone /Viton /EPDM/TEV/ Butyronitrile/ PTFE gasket (hard) / PTFE gasket (soft)
Performance Characteristics
PP＜60℃
PP with stainless steel lined end cap＜85℃
PP with stainless steel lining＜95℃
Positive/Reverse pressure resistance 4bar/2bar (23℃)
Filtration Area
≥0.6 m2 /10”
Dimensions
Outer Diameter: 68mm/70mm
Length（in）: 10, 20, 30, 40
Removal Ratings (μm)
0.1, 0.22, 0.45, 0.65, 0.8, 1.2, 3.0, 5.0
Integrity Test (BP, Water@23℃)
0.1μm≥3.4bar
0.22μm≥2.3bar
0.45μm≥1.3bar
Typical Liquid Flow Rate
Ordering Information
Series | Rating(μm) | End Cap | Length(in) | Support | Port | Seal |
FBS | 01=0.1 | A=222/Fin | 02=2.5" | P=PP | B= Interface lining steel | S= Silicone |
022=0.22 | B=222/Flat | 05=5" | B=PBT | C= Fully lining | E= EPDM | |
045=0.45 | C=226/Fin | 1=10" | V=PVDF | D= Skeleton lining | V= Viton | |
065=0.65 | D=226/Flat | 2=20" | F=PFA | T= TEV | ||
08=0.8 | E=DOE/Flat | 3=30" | M=PE | N=Butyronitrile | ||
1=1.2 | F=215/Fin | 4=40" | G=GF | F=PTFE gasket (hard) | ||
3=3.0 | G=215/Flat | M=PTFE gasket (soft) | ||||
5=5.0 |
