Polytetrafluoroethylene (PTFE)
Food and Beverage
This series of filter cartridge is made of hydrophobic PTFE membrane, which is particularly suitable for the filtration of sterile gases that meet the requirements of GMP. The strong hydrophobicity of the filter membrane itself can effectively prevent the water in the gas from entering the downstream of the filter cartridge, and can effectively intercept the impurities in the gas whose particle diameter is greater than 0.01 micron. Each filter cartridge passes the integrity test before leaving the factory, so that the quality of filter cartridge is guaranteed.
Features and Benefits
Hydrophobic PTFE membrane
High interception rate
High flow rates and low pressure drop
The gas interception accuracy is 0.01μm
Application
Compressed air filtration
Sterile tank respirator filter element
Fermenter air filtration
Materials of Construction
Membrane: Hydrophobic PTFE
Cage &Support & End Caps: PP
O-rings/Gasket: Silicone /Viton /EPDM/TEV
Performance Characteristics
PP＜60℃
PP with stainless steel lined end cap＜85℃
PP with stainless steel lining＜95℃
Positive/Reverse pressure resistance 4bar/2bar (23℃)
Filtration Area
≥0.6 m2 /10”
Dimensions
Outer Diameter: 68mm/70mm
Length（in）: 10, 20, 30, 40
Pore Size (μm)
0.01
Integrity Test (BP, 95%ethanol@23℃)
0.01μm≥1.1bar

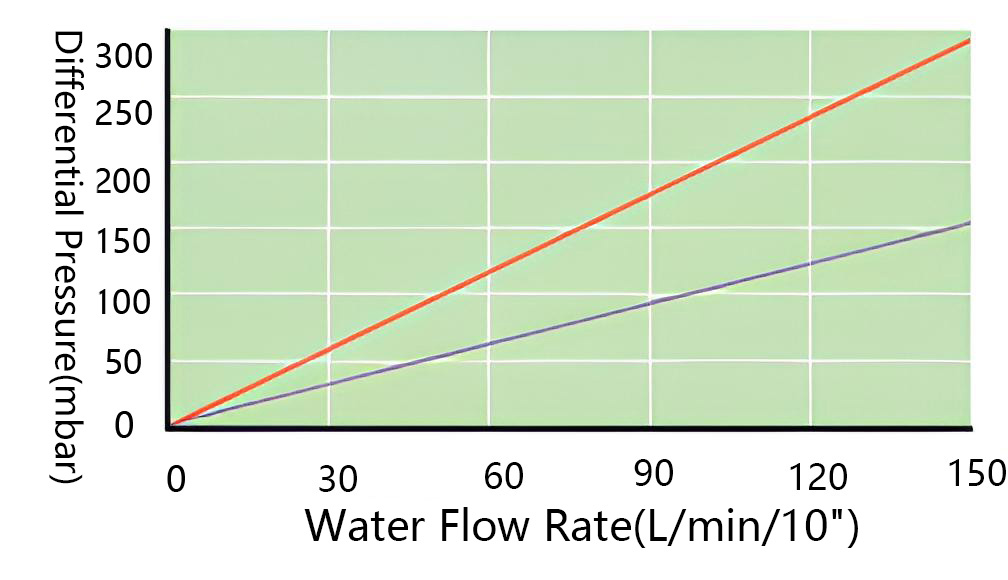

Typical Liquid Flow Rate
Ordering Information
Series | End Cap | Length(in) | Port | Seal |
FBT001 | A=222/Fin | 02=2.5" | B= Interface lining steel | S= Silicone |
B=222/Flat | 05=5" | C= Fully lining | E= EPDM | |
C=226/Fin | 1=10" | D= Skeleton lining | V= Viton | |
D=226/Flat | 2=20" | T= TEV | ||
E=DOE/Flat | 3=30" | N=Butyronitrile | ||
F=215/Fin | 4=40" | F=PTFE gasket (hard) | ||
G=215/Flat | M=PTFE gasket (soft) |
