Polyvinylidene fluoride (PVDF)
Food and Beverage

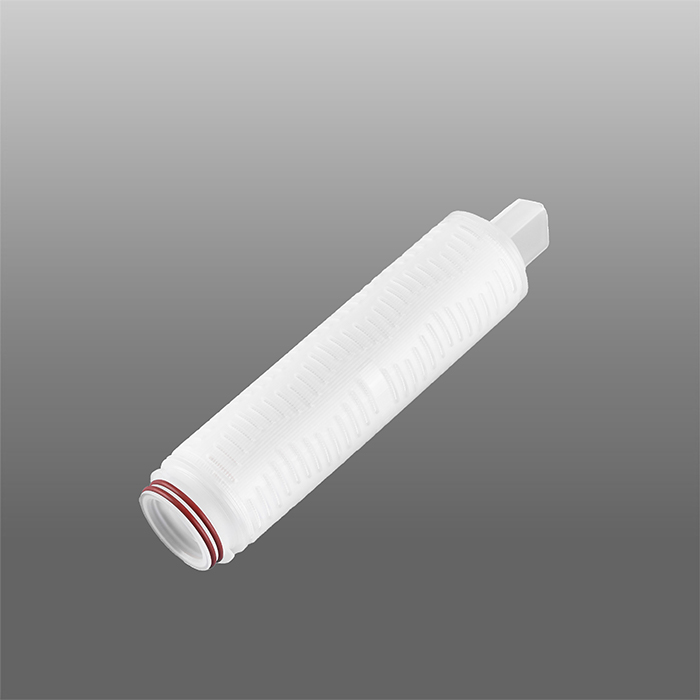

This series of filter cartridge is made of hydrophilic PVDF filter membrane, which has the characteristics of high flux, high flow rate and low protein absorption, and is suitable for filtration of various protein containing solutions. Hydrophilicity enables the filter cartridge to be filtered directly without pre-wetting with organic solvents. Each filter cartridge passes the integrity test before leaving the factory, so that the quality of the filter cartridge is guaranteed.
Features and Benefits
Natural hydrophily
No need to prewetting
High dirt-holding
Lowest protein binding and low extractables
Application
Sterilization filtration of beer and red wine
Sterilization filtration of mineral water and pure water
Sterilization filtration of soft drinks
Materials of Construction
Membrane: Hydrophilic PVDF
Cage & Support & End Caps: PP
O-rings/Gasket: Silicone /Viton /EPDM/TEV
Performance Characteristics
PP＜60℃
PP with stainless steel lined end cap＜85℃
PP with stainless steel lining＜95℃
Positive/Reverse pressure resistance 4bar/2bar (23℃)
Filtration Area
≥0.62 m2 /10”
Dimensions
Outer Diameter: 68mm
Length（in）: 10, 20, 30, 40
Removal Ratings (μm)
0.1, 0.22, 0.45, 1.0, 3.0, 5.0
Integrity Test (BP, Water @23℃)
0.22μm ≥ 2.4bar

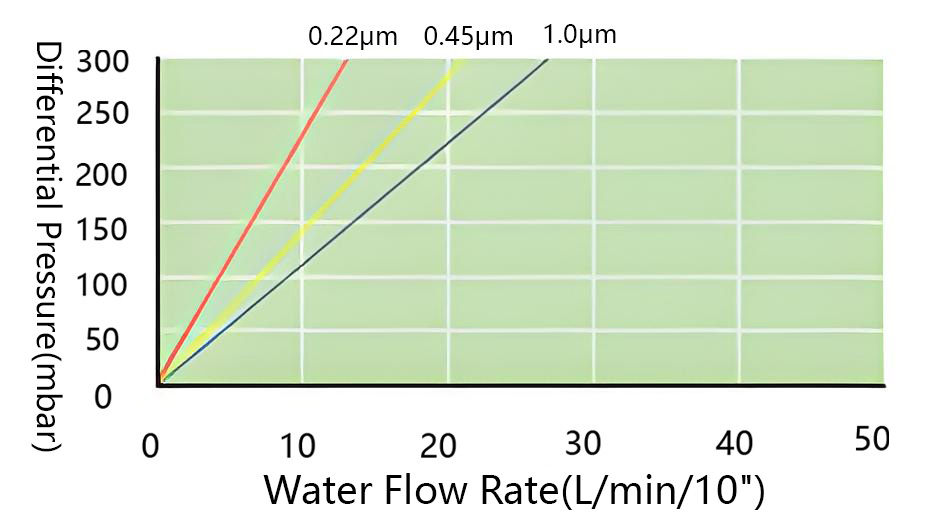

Typical Liquid Flow Rate
Ordering Information
Series | Rating(μm) | End Cap | Length(in) | Support | Port | Seal |
FBVL | 01=0.1 | A=222/Fin | 02=2.5" | P=PP | B= Interface lining steel | S= Silicone |
022=0.22 | B=222/Flat | 05=5" | B=PBT | C= Fully lining | E= EPDM | |
045=0.45 | C=226/Fin | 1=10" | V=PVDF | D= Skeleton lining | V= Viton | |
1=1.2 | D=226/Flat | 2=20" | F=PFA | T= TEV | ||
3=3.0 | E=DOE/Flat | 3=30" | M=PE | N=Butyronitrile | ||
5=5.0 | F=215/Fin | 4=40" | G=GF | F=PTFE gasket (hard) | ||
G=215/Flat | M=PTFE gasket (soft) |
